High accuracy compact S beam and S type load cell

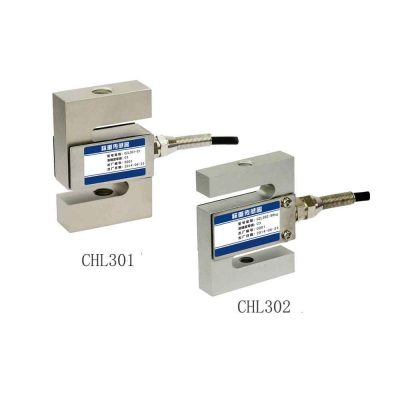

CHL301  CHL302

High accuracy compact S beam and S type load cell

Alloy-steel/Aluminum-Alloy material, tension and/or compression loading possible, easy installation, suitable for crane scale, mechanical conversion scale, hopper scale and other electronic weighing devices.

ORDER NOW

Overview

CHL301/302 S-beam load cells are compact and provide superior performance for tension or compression loading. This design provides excellent linearity and temperature performance.

  • S beam design structure
  • CHL301 is Alloy-steel material, CHL302 is Aluminum-alloy material
  • Rated load:100, 200, 300, 500, 1000, 2000, 5000KG
  • Hermetically sealed by laser, nickel-plated, waterproof and anti-corrosion
  • IP66 ingress protection is suitable for all kinds of environments.
  • 4-core shielded cable(φ5×3000mm)

Main Features

  • 100kg, 200kg, 300kg, 500kg, 1000kg, 2000kg, 5000kg range
  • ±0.03%F.S accuracy
  • Built-in overload resistance
  • Current consumption: <20mA
  • One-piece, alloy steel(CHL301) / alumiumn ally(CHL302) construction
  • Integral cable
  • Cost efficient

Other details

CHL301

S type load cell-size
Model Scale(kg) A B C M
CHL301 10~50 50.8 12.7 64 M8
100~500 50.8 19 76 M12×1.75
750~1500 50.8 25.4 76 M12×1.75
2000~5000 76.2 25.4 108 M18×1.5
CHL301S 1000~3000 60 30 80 M16

CHL302

CHL302 S type loadcell 50kg 100kg 500kg-size
Model Scale(kg) A B C M
CHL302 1~5 70 10 60 M6
10~50 50.8 12.7 63.5 M8
100 50.8 19.1 76.2 M12
150~500 64 23 82 M12
Precision grade C2
Comprehensive error 0.03%F.S
Rated output 2±0.02mV/V
Non-linearity  0.03%F.S
Hysteresis  0.03%F.S
Repeatability  0.02%F.S
Creep  0.03%F.S/10min
Zero balance ±1%F.S
Input resistance 350±5Ω
Output resistance 350±3Ω
Insulation resistance ≥5000MΩ(100VDC)
Excitation voltage 9~12V DC
Compensated temp -10~40℃
Use temp. -50~55℃
Temp effect on Zero 0.03%F.S/10℃
Temp effect on Span 0.03%F.S/10℃
Defend grade IP66
Safe load 150%
Ultimate overload 200%
Precision grade C2
Comprehensive error 0.03%F.S
Rated output 2±0.02mV/V
Non-linearity  0.03%F.S
Hysteresis  0.03%F.S
Repeatability  0.02%F.S
Creep  0.02%F.S/10min
Zero balance ±1%F.S
Input resistance 350±5Ω
Output resistance 350±3Ω
Insulation resistance ≥5000MΩ(100VDC)
Excitation voltage 9~12V DC
Compensated temp -10~40℃
Use temp. -50~55℃
Temp effect on Zero 0.03%F.S/10℃
Temp effect on Span 0.03%F.S/10℃
Defend grade IP66
Safe load 150%
Ultimate overload 200%

Load instruction

load instruction

Wiring

load cell wiring

Warranty

Warranty: 12 months

For support, please visit support center or email us at sale@aposunmeter.com

Package

1 × CHL301 / CHL302 S type load cell

Package type: carton box
